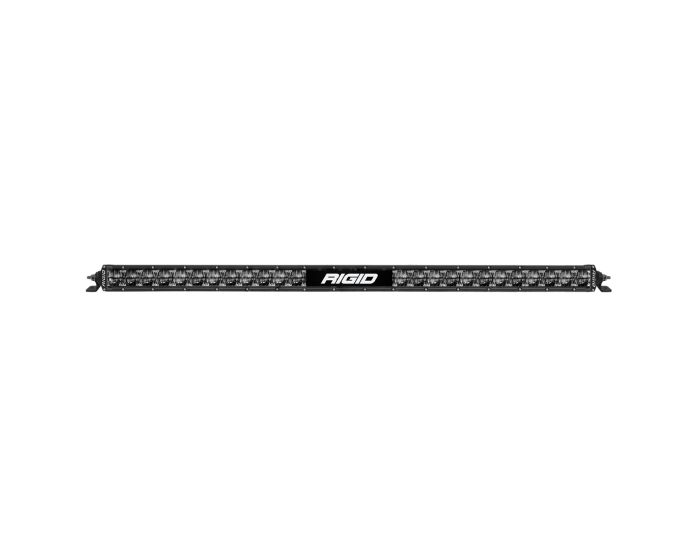

SR-Series 30 Inch Dual Function SAE with Amber Backlight

$1,001.99
Add to Compare

Off-road auxiliary lighting is one thing, but everyone knows that it's important to have lighting that is also safe and legal for on-road use. RIGID's SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer Amber backlighting. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens; the RIGID SAE Compliant Lights represent the ultimate solution for your street-legal lighting in North America.

LEARN MORE

Limited Lifetime Warranty
30-Day Returns
Do you need help? Send us a message and our professionals will help you
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Features

  • Low profile, high output, measures under 2” but throws serious light
  • Hybrid or Specter optics in beam patterns built for your mission
  • Fits where others can’t. Ideal for tight spots and clean installs
  • Sleek design for seamless installations

Specifications

Size: 30"

Light Shape: BAR

Mount Type: SURFACE MOUNT

Beam Category: DRIVING

Voltage Range: 9V - 36V

Current Draw at 14V (a): 12.9

Raw Lumens: 14148

Watts: 180

Lux @10m: 745.5

Beam Distance @ 1 LUX: 273

Beam Distance @ .25 LUX: 546.1

Peak Beam Intensity(cd): 74555

Horizontal Beam Angle: 53.6

Vertical Beam Angle: 9.1

Dimensions

Product Height: 2.7 in

Product Width: 31.5 in

Product Depth: 3 in

Product Weight: 7.4 lbs

Installation Instructions

What's In The Box

Single Light BarSingle Light Bar

Single Light Bar

Mounting HardwareMounting Hardware

Mounting Hardware

L-Shaped BracketL-Shaped Bracket

Black Power Coated L-Shape Brackets

Wiring HarnessWiring Harness

Harness & Switch w/Relay

DIFFERENT TYPES OF BEAM PATTERNS

SAE Beam

Street legal beam pattern compliant with SAE standards. Designed for on road use, it provides safe, controlled illumination without glare for other drivers.

LEARN MORE about Beam Patterns

SAE beam patternSAE beam pattern

SAE LIGHTS

RIGID’s powerful SAE-compliant LED lights maximize safety and visibility. Available in multiple lens colors to deliver bright and reliable performance when you’re on the road.

Street Legal LightsStreet Legal Lights
