SKU
930413
Be the first to review this product

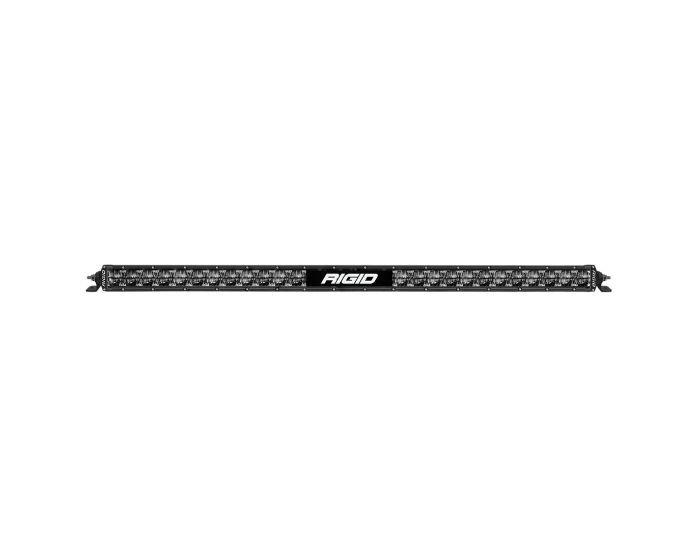

SR-Series 30 Inch Dual Function SAE with White Backlight

$999.99
Add to Wishlist
Add to Compare

Limited Lifetime Warranty
30-Day Returns
Do you need help? Send us a message and our professionals will help you
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Associated Products
Check items to add to the cart or
  1. SR-Series 20 Inch Dual Function SAE with White Backlight
    SR-Series 20 Inch Dual Function SAE with White Backlight
    $759.99
  2. 930414 - SR-Series 30 Inch SAE Driving Amber Product Image
    SR-Series 30 Inch Dual Function SAE with Amber Backlight
    $1,001.99
Features

  • Low profile, high output, measures under 2” but throws serious light
  • Hybrid or Specter optics in beam patterns built for your mission
  • Fits where others can’t. Ideal for tight spots and clean installs
  • Sleek design for seamless installations

Specifications

Size: 30"

Light Shape: BAR

Mount Type: SURFACE MOUNT

Beam Category: DRIVING

Voltage Range: 9V - 36V

Current Draw at 14V (a): 12.9

Raw Lumens: 14148

Watts: 180

Lux @10m: 745.5

Beam Distance @ 1 LUX: 273

Beam Distance @ .25 LUX: 546.1

Peak Beam Intensity(cd): 74555

Horizontal Beam Angle: 53.6

Vertical Beam Angle: 9.1

Dimensions

Product Height: 2.7 in

Product Width: 31.5 in

Product Depth: 3 in

Product Weight: 6.7 lbs

Installation Instructions

File Icon 11-12870-B_RIGID-SAE_SR_SERIES-INSTALLATION (832.57 kB)
File Icon E-Series PRO and SR-Series PRO Installation Instructions (832.92 kB)

What's In The Box

Single Light BarSingle Light Bar

Single Light Bar

Mounting HardwareMounting Hardware

Mounting Hardware

L-Shaped BracketL-Shaped Bracket

Black Power Coated L-Shape Brackets

Wiring HarnessWiring Harness

Harness & Switch w/Relay

DIFFERENT TYPES OF BEAM PATTERNS

SAE Beam

Street legal beam pattern compliant with SAE standards. Designed for on road use, it provides safe, controlled illumination without glare for other drivers.

LEARN MORE about Beam Patterns

SAE beam patternSAE beam pattern

SAE LIGHTS

RIGID’s powerful SAE-compliant LED lights maximize safety and visibility. Available in multiple lens colors to deliver bright and reliable performance when you’re on the road.

Street Legal LightsStreet Legal Lights
