Revolve Bar
SKU

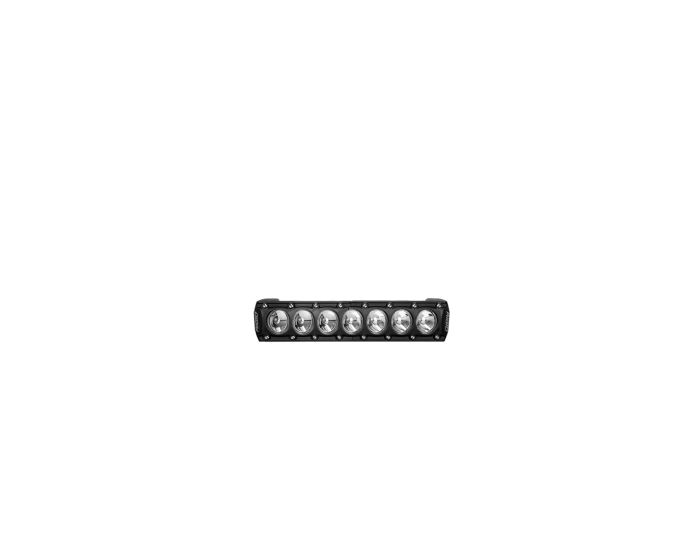

Revolve Bar
RIGID's Revolve Light Bar combines RIGID's legendary quality in a sleek compact design. The Revolve Light Bar is built with a high-grade aluminum alloy housing and heatsink, and is coated with a durable textured powder-coat finish in black, it features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure. The Revolve Light Bar features Broad-Spot™ optics that combine the attributes of a spot and flood beam pattern projecting the perfect amount of light to tackle almost any road or weather condition. The Revolve Light Bar comes in 10, 20, 30, 40, and 50 Inch sizes and features back-lit trim rings available in amber or white that are significantly brighter when compared to other back-lit applications.
Need To Order By Phone?
(855) - 760 - 5337
- Independently Controlled Trim Ring
- Textured Black Powder Coat Finish
- Light Weight, Durable Nylon Bezel
- Max-Bright Auxiliary Lighting Trim Ring
- Efficient Current Draw for Systems with Limited Power and UTVs
- Corrosion Resistant Stainless Steel Chrome Hardware
- High Grade Aluminum Alloy Heatsink
- Compatible With Original E-Series Mounting Dimensions
- Harness And Switch Sold Separately
- Limited Lifetime Warranty
- Revolve Bar
- Mount Brackets
- Mount Hardware
- Marketing Pack
| Size | Part No. | Wt (Lbs) | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 10" | 410613 | 2.30 | 47 | 2.9 | 5082 | 970.44 | 311.5 | 623 | 97044 | 19.9 |
| 10" | 411613 | 2.30 | 47 | 2.9 | 5082 | 970.44 | 311.5 | 623 | 97044 | 19.9 |
| 20" | 420613 | 4.30 | 84 | 6.3 | 10164 | 1851.5 | 430.3 | 860.6 | 185150 | 20.5 |
| 20" | 421613 | 4.30 | 84 | 6.3 | 10164 | 1851.5 | 430.3 | 860.6 | 185150 | 20.5 |
| 30" | 430613 | 6.20 | 126 | 9.4 | 15246 | 2591.76 | 509.1 | 1018.2 | 259176 | 19.9 |
| 30" | 431613 | 6.20 | 126 | 9.4 | 15246 | 2591.76 | 509.1 | 1018.2 | 259176 | 19.9 |
| 50" | 450613 | 10.10 | 217 | 17 | 25410 | 4097.23 | 640.1 | 1280.2 | 409723 | 22.8 |
| 50" | 451613 | 10.10 | 217 | 17 | 25410 | 4097.23 | 640.1 | 1280.2 | 409723 | 22.8 |
| 40" | 440613 | 8.10 | 169 | 13 | 20328 | 3578.83 | 598.2 | 1196.5 | 357883 | 22 |
| 40" | 441613 | 8.10 | 169 | 13 | 20328 | 3578.83 | 598.2 | 1196.5 | 357883 | 22 |
