Features

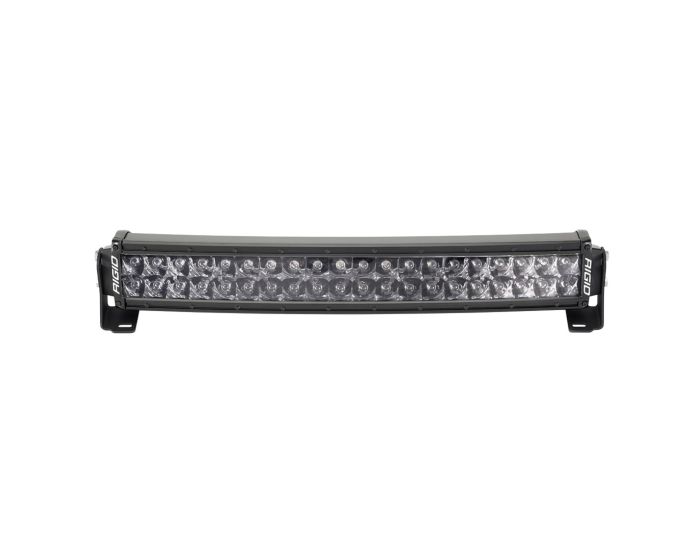

- Signature curved design for a wider field of light and a clean, integrated look
- Matches the lines of modern trucks and SUVs for form and function
- Available in single-row and double-row versions to fit your build
- Also available in Midnight Edition, Radiance, and SR-Series formats
Specifications
Size: 20"
Light Shape: BAR
Mount Type: SURFACE MOUNT
Beam Category: SPOT
Voltage Range: 9V - 36V
Current Draw at 14V (a): 14.43
Raw Lumens: 25080
Watts: 202
Lux @10m: 1897.2
Beam Distance @ 1 LUX: 435.6
Beam Distance @ .25 LUX: 871.1
Peak Beam Intensity(cd): 189719
Horizontal Beam Angle: 26.7
Vertical Beam Angle: 20.1
Dimensions
Product Height: 3.88 in
Product Width: 22.69 in
Product Depth: 4.06 in
Product Weight: 6.31 lbs
What's In The Box
Single Light Bar
Black Powder Coated L-Shape Brackets
Harness & Switch w/Relay
Mounting Hardware
DIFFERENT TYPES OF BEAM PATTERNS
Spot Beam
Designed for long distance visibility with a narrow 10° beam. Perfect for high-speed driving in open terrain, it helps you spot obstacles far ahead.
LEARN MORE about Beam Patterns
