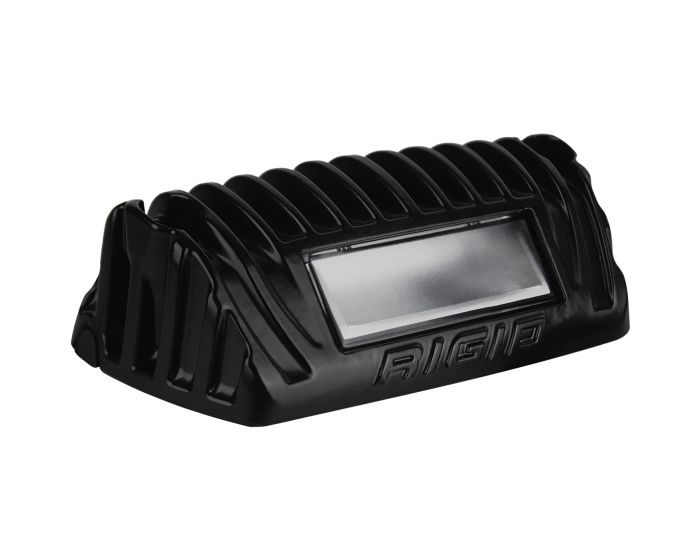

1x2 65 DEGREE DC SCENE LIGHT AMBER
SKU
86630
RIGID 1x2 65° DC Scene Light produces 1100 raw lumens and features a vertical spread of 69° and a horizontal spread of 65°. Using the latest LED technology, all new patent pending optic system, minimal amp draw, and extreme output, the 1x2 65° Scene Light is the perfect area lighting solution. This versatile light can bemounted to your RV, toy hauler, tractor trailer, fire truck and can even be mounted to the undercarriage of your vehicle. Limited Lifetime Warranty.
Need To Order By Phone?
(855) - 760 - 5337
- DC Power LED Scene Or Area Lighting
- Flat Mounting Surface
- 65 Degree Horizontal Spread X 69 Degree Vertical Spread
- 9-36 V DC
- IP68 Compliant
- Impact Resistant Polycorbonate Lens
- Integrated Thermal Management
- Pressure Equalizing Vent
- RFI/EMI Protection
- Operating Temp -145 Deg To +145 Deg F
- Over / Under Voltage Protection
- Durable UV Polyester Powder Coat
- High Grade Aluminum Alloy Housing And Heat Sink
- IP68 Compliant - Dust/Water Ingress
- White Polycarbonate Reflector With 98 Percent Reflectivity
- RoHS Compliant
- Limited Lifetime Warranty
- Off Road Use Only
4 x 4 / 2 x 2 / 2 x 10 HOUSING ONLY
1 x 2 HOUSING ONLY
DC VERSION ONLY
AC VERSION ONLY
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1"X2" | 86630 | 0.53 | SCENE LIGHT | 10 | 0.7 | 122 | 5.37 | 23.2 | 46.3 | 536.6 | 100.3 |
