D-SS Series
D-SS Series

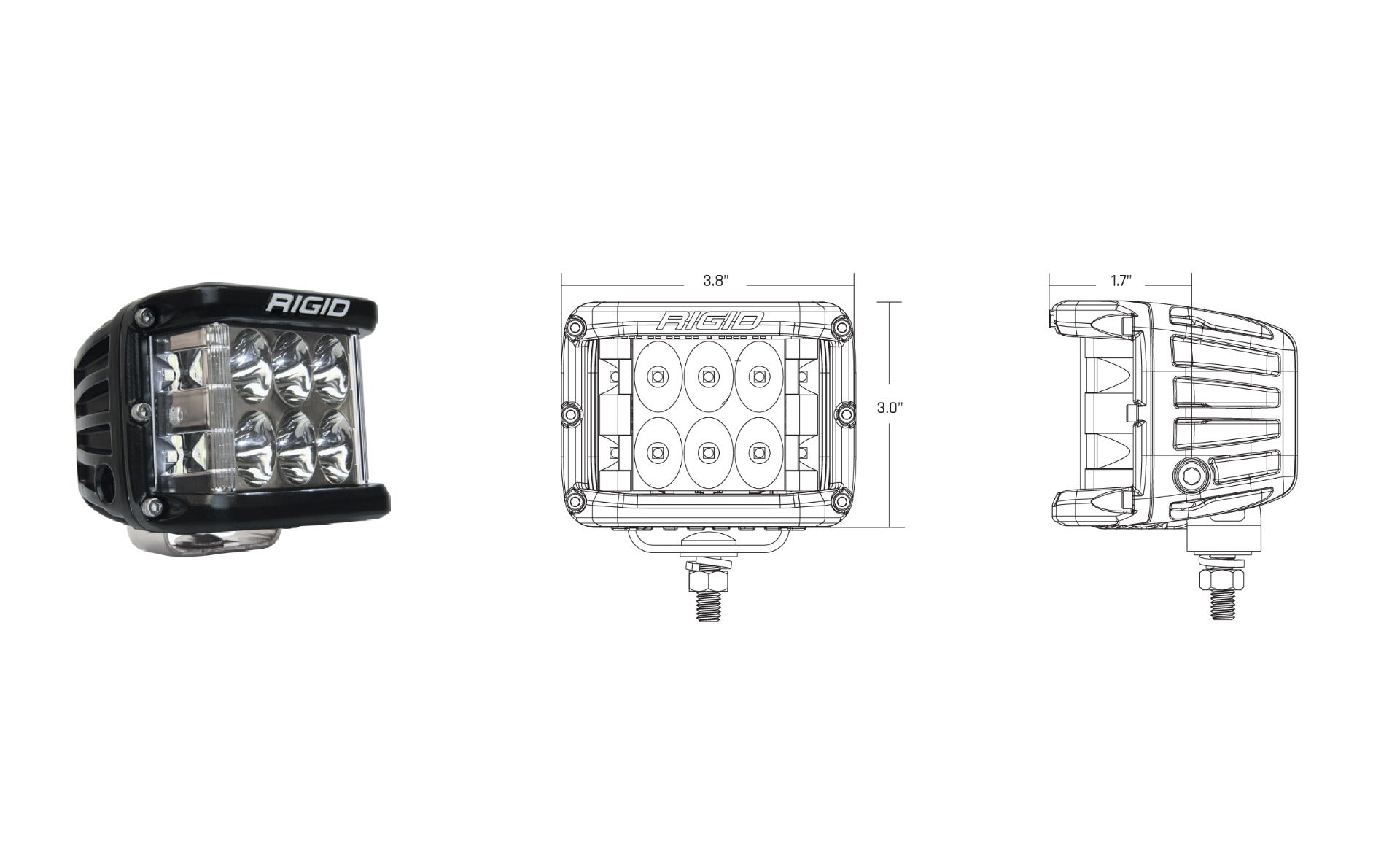

One of RIGID's most versatile, compact lighting solutions just got better with the RIGID D-SS PRO, Dually Side Shooter LED pod. Perfect for any application that requires a wide spread beam, including A-Pillars, Fog Lights, and motorcycle applications. The D-SS PRO incorporates powerful optics and recently improved LED technology for greater output with the added benefit of additional LEDs aimed to the side for a much broader beam.

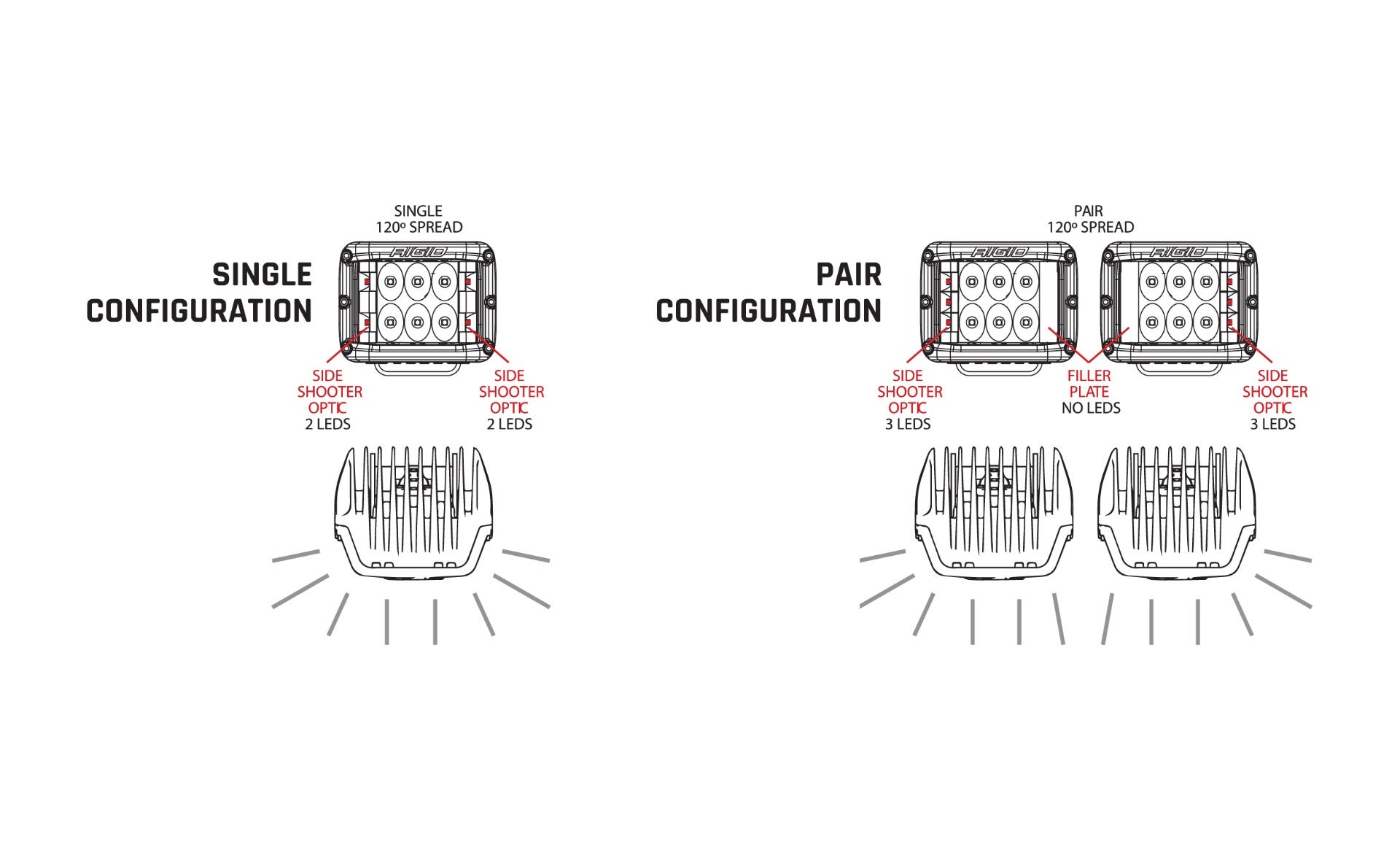

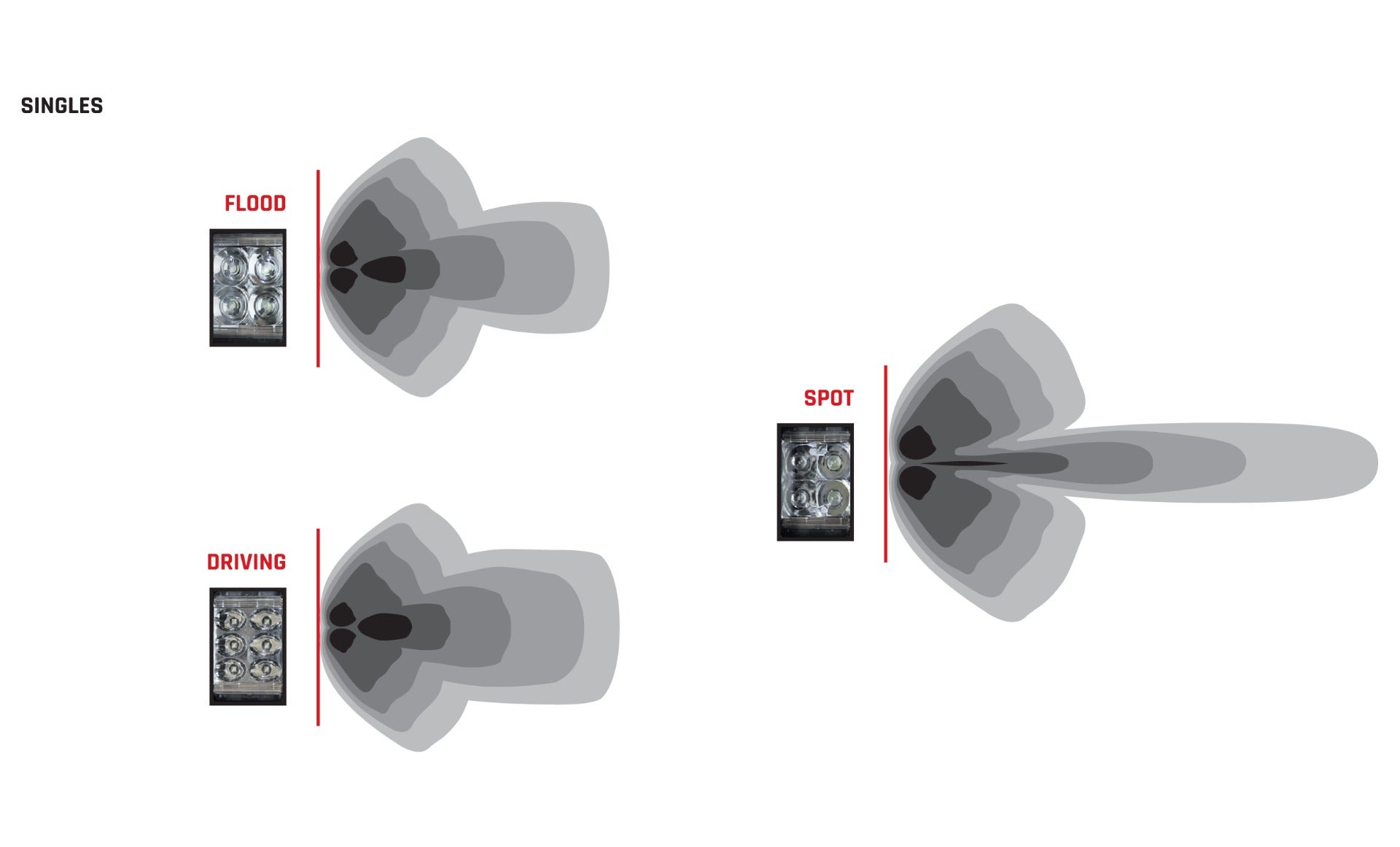

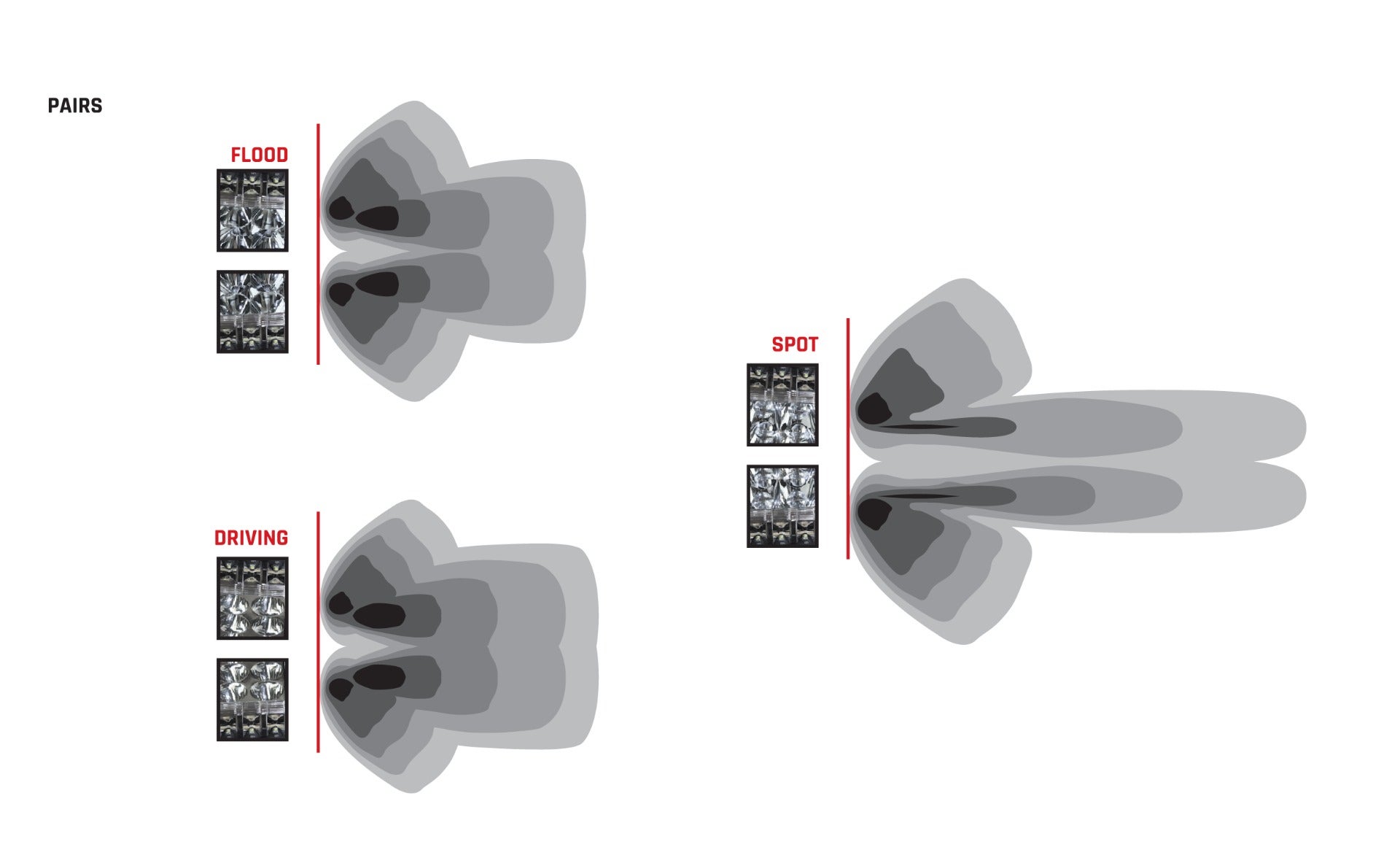

The D-SS PRO packs a powerful punch up to 7,920 lumens depending on the optics chosen The D-SS fixtures boast up to 120-degrees of horizontal lighting coverage when used in pairs or when used in the single light applications. The main forward-facing LEDs are available with RIGID's advanced Flood, Spot, or Driving optics, so there's a D-SS PRO lighting solution for nearly any application. The D-SS PRO LED lights are available in pairs with three side-shooting LEDs on one side of each fixture, or in single applications with a pair of side-shooting LEDs on both sides of the fixture. Only RIGID provides a broad, powerful lighting solution in such a compact package.
D-SS
KEY FEATURES
- 50,000 Plus Hour Lifespan
- 9-36 V DC
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Integrated Thermal Management System
- Impact Resistant Polycarbonate Lens
- Over/Under Voltage Protection
- RFI/EMI Protection
- Reverse Polarity Protection
- RoHS Compliant
- IP68 Compliant - Dust/Water Ingress
- Operating Temp -40 Deg F To +145 Deg F
- SAE J575 Compliant - Shock/Vibration
- Available In White and Black Housing
- Pressure Equalizing Vent
- Waterproof Connector (Exclusions Apply)
- Limited Lifetime Warranty
- Off Road Use Only
The next comparison is between amber LED vs. amber lens. Using the RIGID D-series as an example, the D-Series with amber LEDs has approximately half of the peak intensity that the D-series with the amber lens has: LEDs Lenses 16,218cd vs. 34,340cd We went with the change in lens color over LED because of the significant difference in peak intensity between LEDs and the lens. The drop in light output from the clear lens to the colored lens occurs when that white light is converted from blue to another color. There is a loss of energy that happens in that process. Even with that loss of energy, we end up with a higher output than what is possible with an amber LED. The Amber PRO Edition also provides a more cohesive aesthetic among the OEM light colors.
