Features
- Complete Roof Line LED Light Mount Kit
- Stainless Steel Construction
- UV and Abrasion Resistant Powder Coat
- Alloy Housing and Heatsink
- Integrated Thermal Management System
- Impact Resistant Polycorbonate Lens
- Over/Under Voltage Protection
- RFI/EMI Protection
- Reverse Polarity Protection9-36 VDC Operation
- RoHS Compliant
- IP68 Compliant - Dust/Water Ingress
- Operating Temp -40 Deg F To +145 Deg F
- SAE J575 Compliant - Shock/Vibration
- Pressure Equalizing Vent
- Waterproof Connector
- 50,000 Hr+ LED Lifespan
- Limited Lifetime Warranty
- Off Road Use Only
- Professional installation recommended
Specifications
Light Shape: BAR
Mount Type: ROOF MOUNT
Beam Category: SPOT FLOOD COMBO
Voltage Range: 9V - 36V
Current Draw at 14V (a): 18.5
Raw Lumens: 25080
Watts: 259
Lux @10m: 3772
Beam Distance @ 1 LUX: 614
Beam Distance @ .25 LUX: 1228.3
Peak Beam Intensity(cd): 393691
Horizontal Beam Angle: 21
Vertical Beam Angle: 18
Dimensions
Product Width: 41.5 in
Product Depth: 3 in
Product Weight: 13 lbs

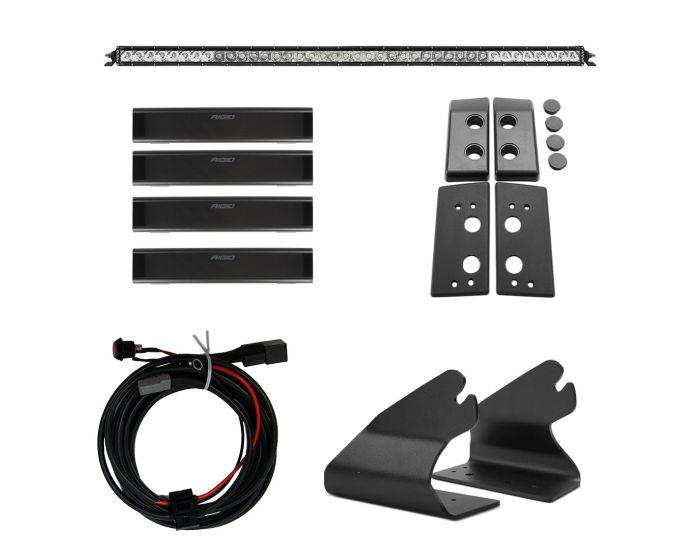

What's In The Box
Single Light Bar
Vehicle Specific Roof Mounts
Mounting Hardware
Harness & Switch w/Relay
(4) 10" Black Light Covers
DIFFERENT TYPES OF BEAM PATTERNS
Flood Beam
Pattern
Moderate 20° beam for trail and overland use. Offers long-distance illumination with a wider spread than spot beams.
Spot Beam
Pattern
Designed for long distance visibility with a narrow 10° beam. Perfect for high-speed driving in open terrain, it helps you spot obstacles far ahead.
