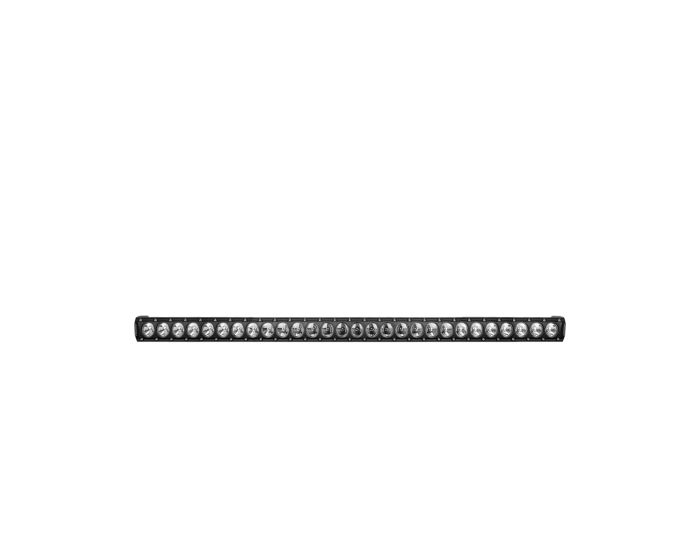

Revolve 40 Inch Bar with Amber

$849.99
Add to Wishlist
Add to Compare

RIGID's Revolve Light Bar combines RIGID's legendary quality in a sleek compact design. The Revolve Light Bar is built with a high-grade aluminum alloy housing and heatsink, and is coated with a durable textured powder-coat finish in black, it features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure. The Revolve Light Bar features Broad-Spot optics that combine the attributes of a spot and flood beam pattern projecting the perfect amount of light to tackle almost any road or weather condition. The Revolve Light Bar comes in 10, 20, 30, 40, and 50 Inch sizes and features back-lit trim rings available in amber or white that are significantly brighter when compared to other back-lit applications.

LEARN MORE

Limited Lifetime Warranty
30-Day Returns
Do you need help? Send us a message and our professionals will help you
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Associated Products
Check items to add to the cart or
  1. Photo of a 10 Inch Amber PRO Light cover for a Revolve Light Bar
    Revolve Bar Cover Amber
    $22.99
  2. Photo of a multi-trigger harness with two switches for Radiance light bars
    Radiance Bar Multi-Trigger Wire Harness
    $109.99
  3. 196021 - Revolve Bar Yellow 10 Inch Light Cover
    Revolve Bar Cover Yellow
    $22.99
  4. 196020 - Revolve Bar Black 10 Inch Light Cover
    Revolve Bar Cover Black
    $23.99
Features

  • The Revolve Light Bar is built with a high-grade aluminum alloy heatsink and is protected by a textured black powder coat.
  • Features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure.
  • Broad Spot beam blends Spot and Flood for excellent visibility to tackle any road or weather condition.
  • The Revolve Light features a backlight auxiliary trim ring that pops in amber that functions as area or working light, white backlight model also available.
  • Available in light bars 10" - 50" and pods.

Specifications

Product Name: Revolve 40 Inch Bar with Amber

SKU: 441613

UPC: 849774034077

Size: 40"

Light Shape: BAR

Mount Type: SURFACE MOUNT

Beam Category: BROAD SPOT

Voltage Range: 9V - 36V

Current Draw at 14V (a): 13

Raw Lumens: 20328

Watts: 169

Lux @10m: 3578.83

Beam Distance @ 1 LUX: 598.2

Beam Distance @ .25 LUX: 1196.5

Peak Beam Intensity(cd): 357883

Horizontal Beam Angle: 22

Vertical Beam Angle: 19.2

Dimensions

Product Height: 2.5 in

Product Width: 41.1 in

Product Depth: 3 in

Product Weight: 8.1 lbs

Installation Instructions

File Icon 11-14073-A_RIGID-REVOLVE-INSTALLATION (691.15 kB)

What's In The Box

Single Light BarSingle Light Bar

Single Light Bar

Mounting HardwareMounting Hardware

Mounting Hardware

Stainless Steel L-Shape Brackets

Open Wire LeadsOpen Wire Leads

Open Wire Leads

DIFFERENT TYPES OF BEAM PATTERNS

Broad Spot Beam

Combines the reach of a spot beam with the spread of a flood. Designed to deliver balanced visibility for confident driving.

LEARN MORE about Beam Patterns

Broadspot beam patternBroadspot beam pattern

Revolve

Designed for those who want maximum impact in a sleek and stylish package. Back-lit trim ring pops in white or amber way brighter than your average backlight.
